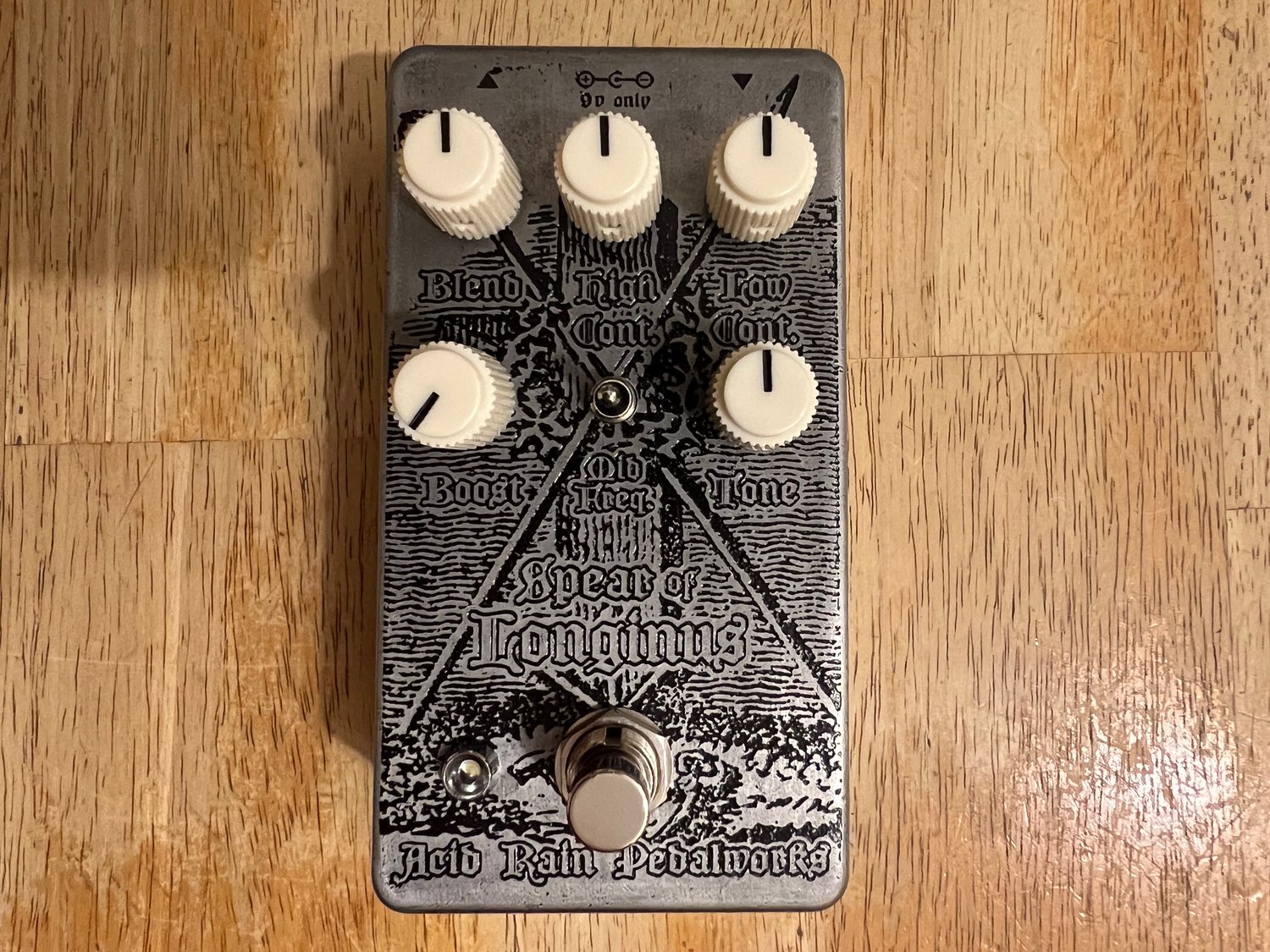

Spear Of Longinus boost (Fallen Hope finish)
The Spear Of Longinus is the 2nd collaboration between Myself and T. Bizon, along with Nick Williams (ex-Dunwich Amplification). It is a dual circuit boost created with the intention of being able to be used before or after a source of "dirt", but also sounds great into a clean channel.
The Spear Of Longinus consists of two different boost circuits, one "clean", the other "dirty". These run parallel to each other into a shared output stage and the ability to blend between the two boost circuits.
The "dirty" side is our take on a negative feedback loop clipping boost circuit with a TS style tone control and a Mid Frequency toggle switch. The "clean" side is an opamp boost with the ability to shape the upper and lower frequencies.

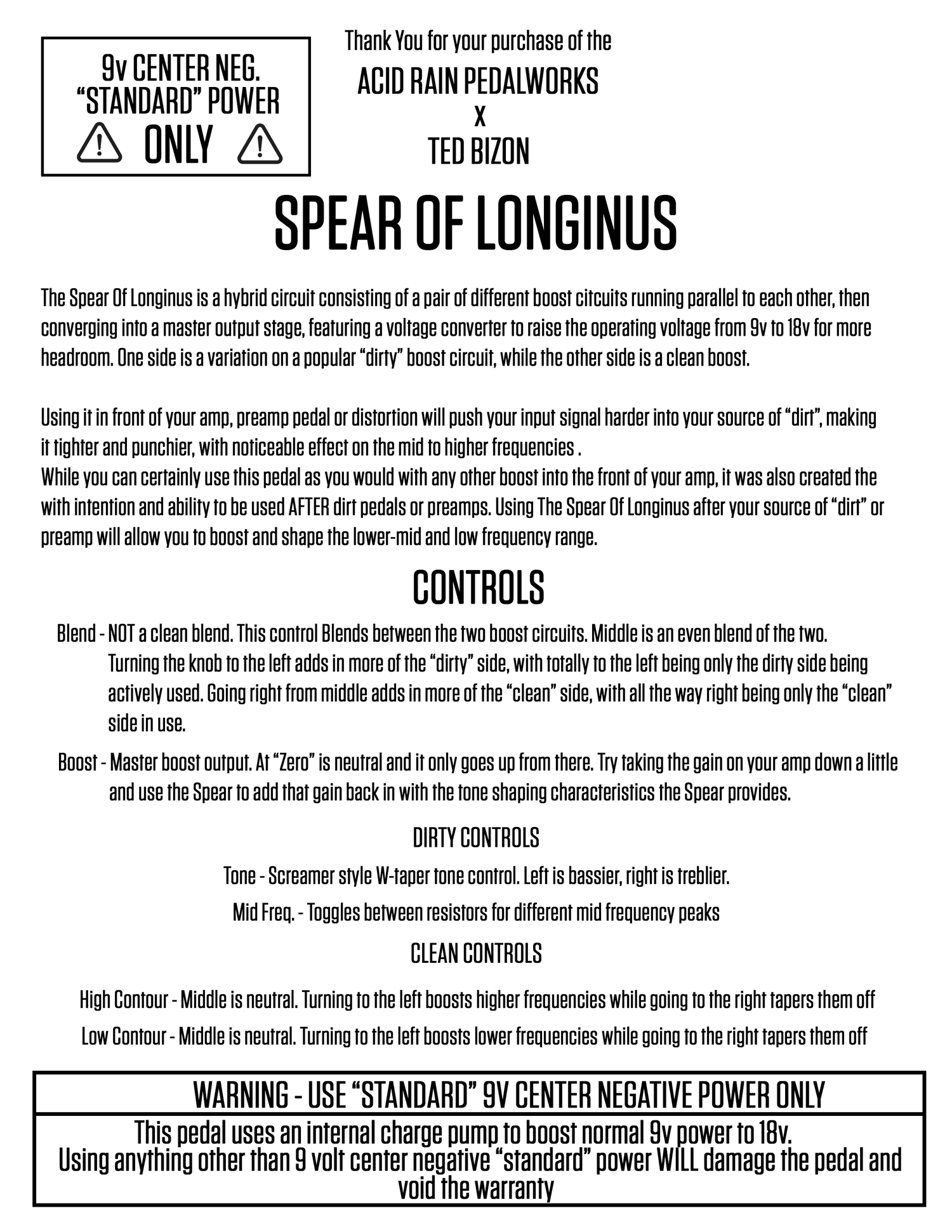

Blend is NOT a clean blend. It controls how much of each boost reaches the output stage (i.e. more "dirty" to the left, more "clean" to the right, equal in the middle)
All units are acid etched.
Made with mini Brutalist knobs, Lumberg jacks, High Quality Low Pressure footswitches, Taiway toggle switches, and Texas Instruments IC's.
PCBs and SMT PCB assembly provided by JLCPCB.
POWER WARNING
--------------------------------------------------------------------------------------------
The Spear Of Longinus runs on standard 9v Center Negative power ONLY.
It contains a Voltage Converter to boost the internal power to 18v. Giving this pedal any other current other than a common 9v Center Negative power supply WILL damage it.
--------------------------------------------------------------------------------------------
$185 + shipping
They are being built and ship in roughly week to 10 days
2 year warranty to the Original buyer. Warranty void if improper voltage is used (9v ONLY. See Above.)
Disclaimer: Due to the nature of acid etching, no two enclosures will be exactly alike. Some details will be more apparent in some than others.
EUROPEAN CUSTOMERS: As of March 2023, a VAT/Import fee must be paid when the item is shipped by the merchant, in addition to int'l shipping rates going higher. This fee is reflected in the shipping cost you'll pay. If your country charges you a fee on your end once it arrives in your country, YOU are responsible for paying those fees.
Due to the hand made nature of these items, All sales are final with no refunds offered. Please contact directly before filing a paypal claim.
For customized versions of this pedal, please contact via IG or through the contact info on the shop.
